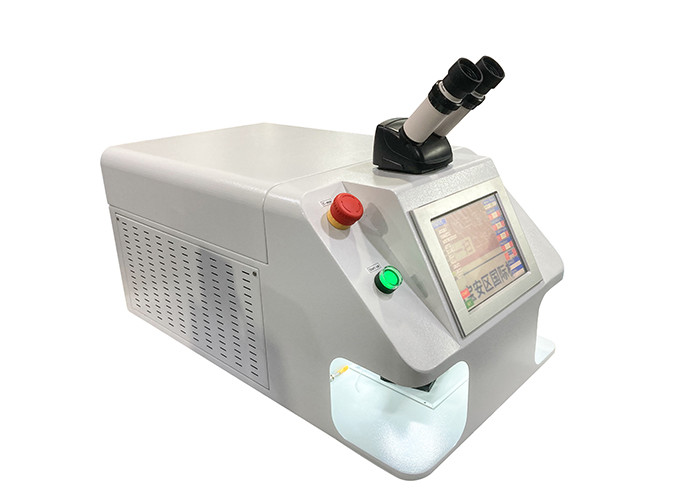

Microscope CNC Laser Gold Soldering Machine Desktop 15ms 120J

  • 1
  • 2
  • 3

Brand Name : Maxwave

Model Number : MW-DW-200

Certification : CE

Place of Origin : China

MOQ : 1pcs

Payment Terms : T/T, Western Union

Supply Ability : >10000 pcs/month

Delivery Time : 5-10 working days

Packaging Details : standard export wooden case, 87*50*53cm, 65kg

Function : jewelry welding and repair, welder for gold, silver, dental smith

Laser Power : 200 watt

Warranty : 2 years

Language : Multi-language

Cooling System : Water Cooling

HS Code : 8515809090

Contact Now

Microscope CNC Laser Gold Soldering Machine Desktop 15ms 120J

CNC Welder Weld Equipment Soldering Machinery Handheld YAG Laser Welding Machine







Parameters



 Laser System  MW-DW200
 Laser Type  1064 YAG Laser
 Nominal Laser Power  200w
 Beam diameter  ±3mm
 Pulse width  0.2-15ms
 Max. Laser Pulse Energy  120J
 Frequency  1-20hz
 Aiming and Positioning  Microscope +CCD (combined)
 Voltage  110-240V
 Language  English
 Machine dimension  70*42*34cm
 Machine Net weight  50kg
 Package size  87*50*53cm
 Gross weight  65kg







Description

Desktop jewelry laser spot welding machine is a laser welding equipment dedicated to the metal jewelry industry. It is mainly used for gold jewelry laser welding, silver jewelry laser welding, titanium alloy jewelry laser welding, stainless steel jewelry laser welding, and manual laser welding of small metal parts. Welding etc. It has the characteristics of high precision, low energy consumption, firm welding and small size.



Features

1. Red point fast positioning, CCD display, microscope optional
2. Adjustable working table allows welding from small size to big size of work piece
3. Fast working speed; professional jig ensures the focus fixed and makes welding easier without using CCD or microscope
4. Slight distortion and affect by heating.
5. Capable of partial heating process.
6. Able to weld with complex, profiled, or tiny letters.
7. Low noise and no pollution.
8. Ultrafine positioning rod makes the welding of tiny corner easier without changing spot position
9. New metal processing (laser welding) technology brings higher quality of end
10.The adjustment of parameter setting is very easy; up to 10 sets of parameters can be memorized for your option

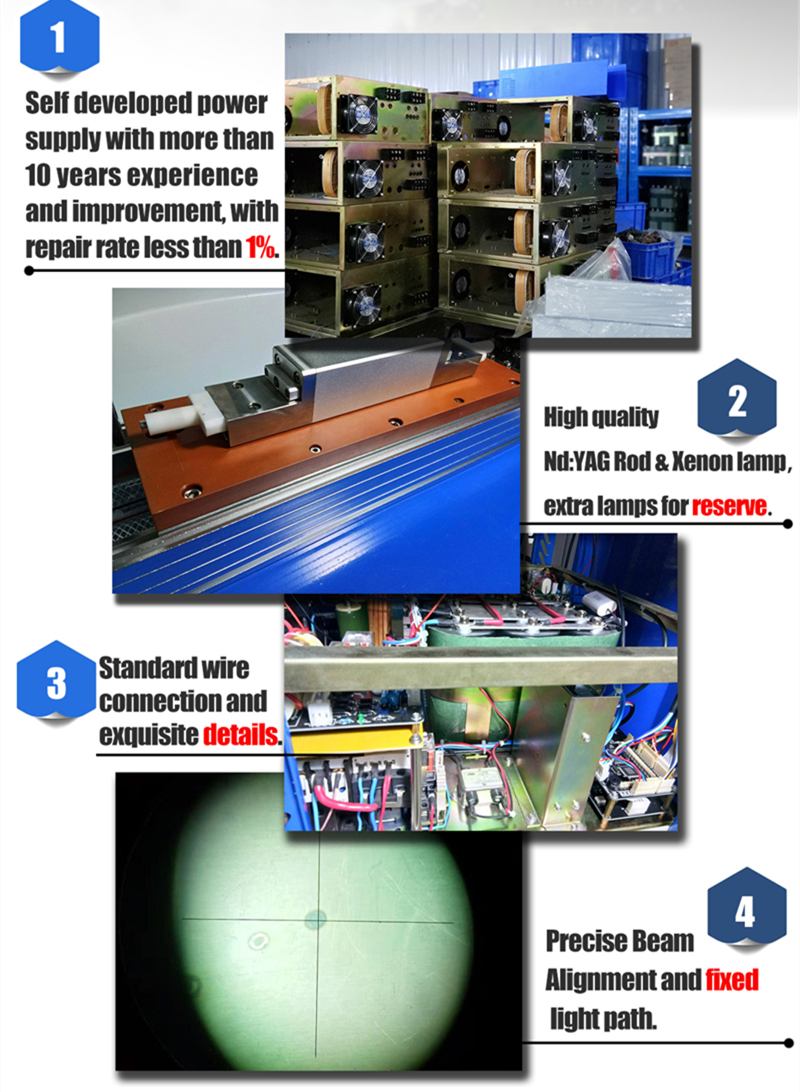

Details

Microscope CNC Laser Gold Soldering Machine Desktop 15ms 120JMicroscope CNC Laser Gold Soldering Machine Desktop 15ms 120J



Samples



Microscope CNC Laser Gold Soldering Machine Desktop 15ms 120J

Microscope CNC Laser Gold Soldering Machine Desktop 15ms 120J
